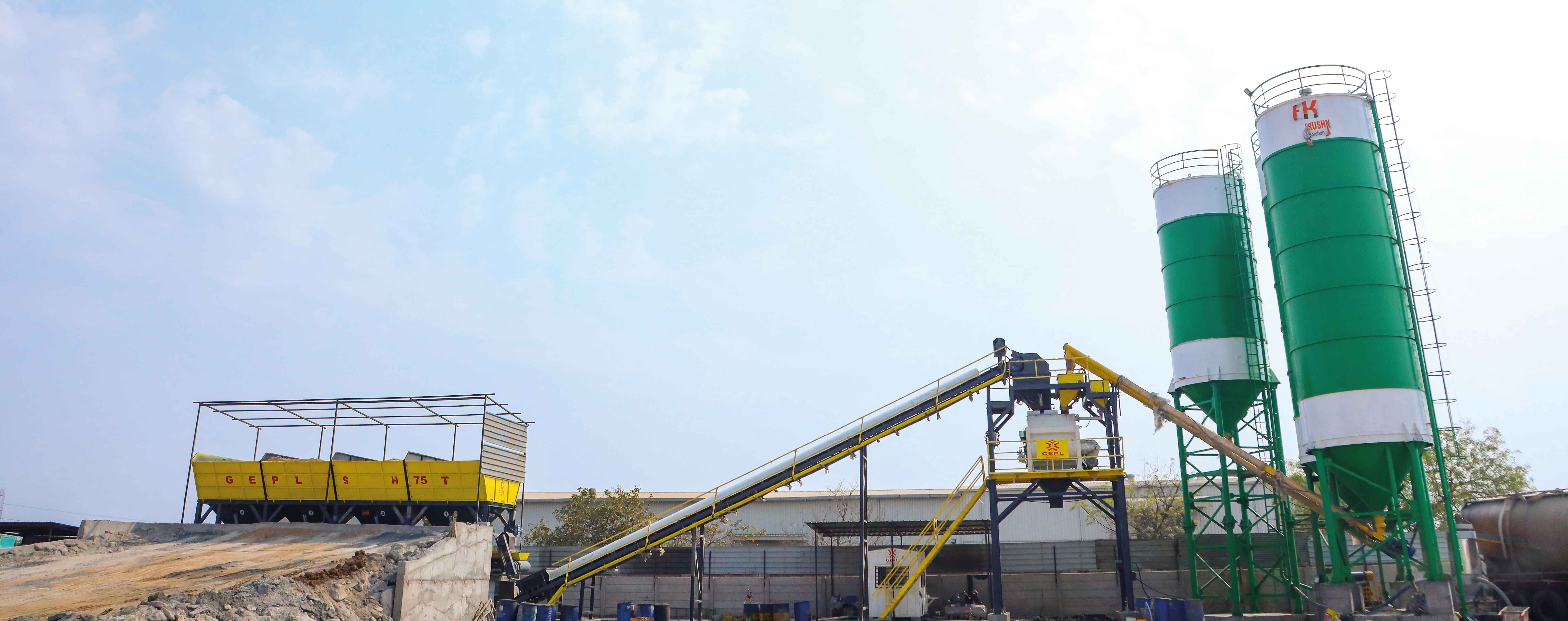

Gayatri Engimech Pvt. Ltd. Stationary Concrete Batching Plants are designed with an In-line bin hopper for maximum efficiency and reliability to produce all types of high-quality concrete to satisfy low to moderate concrete requirements.
This model is particularly well-demanded in RMC and dedicated job sites area.
Gayatri Engimech Pvt. Ltd. Stationary Concrete Batching plants are suitable solutions for Large scale projects to produce High-quality concrete production.
The plant is built to offer maximum rated production capacity, work long hours, and flexibility to be used for several massive infrastructural projects.
The plant is equipped with a High-Tech Automation system including the whole system is controlled through advanced software.
| SR. NO. | DESCRIPTION | GEPL SIH | GEPL SIH | GEPL SIH |
| A | Concrete out-put Capacity | 24 m³/hr. | 30 m³/hr. | 45 m³/hr. |
| B | Mixer Capacity | 400 lit. | 500 lit. | 750 lit. |
| C | Batch Capacity | 0.4 m³ | 0.5 m³ | 0.75 m³ |
| D | Type of Mixer | Pan | Pan/Twin Shaft/Planetary | |
| E | No. of Bin (In-line) | 4 Nos. | ||
| F | Weighing System | |||
| Aggregate | Yes | |||
| Cement | Yes | |||
| Water | Yes | |||
| Additive | Yes | |||
| G | Air Compressor | Yes | ||
| H | Discharge height | 3.8 Mtr. | ||
| Concrete out-put Capacity : 24 m³/hr. |
| Mixer Capacity : 400 lit. |
| Batch Capacity : 0.4 m³ |
| Typ of Mixer : Pan |
| Concrete out-put Capacity : 30 m³/hr. |
| Mixer Capacity : 500 lit. |
| Batch Capacity : 0.5 m³ |
| Typ of Mixer : Pan/Twin Shaft/Planetary |
| Concrete out-put Capacity : 45 m³/hr. |
| Mixer Capacity : 750 lit. |
| Batch Capacity : 0.75 m³ |
| Typ of Mixer : Pan/Twin Shaft/Planetary |
| Weighing System |
| Aggregate : Yes |
| Cement : Yes |
| Water : Yes |
| Additive : Yes |
| Air Compressor : Yes |
| Discharge height : 3.8 Mtr. |
| SR. NO. | DESCRIPTION | GEPL SIH | GEPL SIH | GEPL SIH | GEPL SIH | GEPL SIH | GEPL SIH | GEPL SIH |
| A | Concrete out-put Capacity | 60 m³/hr. | 75 m³/hr. | 90 m³/hr. | 120 m³/hr. | 160 m³/hr. | 200 m³/hr. | 240 m³/hr. |
| B | Mixer Capacity (In ltr.) | 1500/1000 | 1875/1250 | 3000/2000 | 4500/3000 | 6000/4000 | 7500/5000 | 9000/6000 |
| C | Batch Capacity | 1 m³ | 1.25 m³ | 2 m³ | 3 m³ | 4 m³ | 5 m³ | 6 m³ |
| D | Type of Mixer | Twin Shaft/Planetary | ||||||
| E | No. of Bin (In-line) | 4 Nos. | ||||||
| F | Weighing System | |||||||
| Aggregate | Yes | |||||||
| Cement | Yes | |||||||
| Water | Yes | |||||||
| Additive | Yes | |||||||
| G | Air Compressor | Yes | ||||||
| H | Discharge height | 3.8 Mtr. | ||||||
| Concrete out-put Capacity : 60 m³/hr. |
| Mixer Capacity : 1500/1000 |
| Batch Capacity : 1 m³ |
| Typ of Mixer : Twin Shaft/Planetary |
| Concrete out-put Capacity : 75 m³/hr. |
| Mixer Capacity : 1875/1250 |
| Batch Capacity : 1.25 m³ |
| Typ of Mixer : Pan/Twin Shaft/Planetary |
| Concrete out-put Capacity : 90 m³/hr. |
| Mixer Capacity : 3000/2000 |
| Batch Capacity : 2 m³ |
| Typ of Mixer : Pan/Twin Shaft/Planetary |
| Concrete out-put Capacity : 120 m³/hr. |
| Mixer Capacity : 4500/3000 |
| Batch Capacity : 3 m³ |
| Typ of Mixer : Pan/Twin Shaft/Planetary |
| Concrete out-put Capacity : 160 m³/hr. |
| Mixer Capacity : 6000/4000 |
| Batch Capacity : 4 m³ |
| Typ of Mixer : Pan/Twin Shaft/Planetary |
| Concrete out-put Capacity : 200 m³/hr. |
| Mixer Capacity : 7500/5000 |
| Batch Capacity : 5 m³ |
| Typ of Mixer : Pan/Twin Shaft/Planetary |
| Concrete out-put Capacity : 240 m³/hr. |
| Mixer Capacity : 9000/6000 |
| Batch Capacity : 6 m³ |
| Typ of Mixer : Pan/Twin Shaft/Planetary |
| No. of Bin (In-line) : 4 Nos |
| Weighing System |
| Aggregate : Yes |
| Cement : Yes |
| Water : Yes |
| Additive : Yes |
| Air Compressor : Yes |
| Discharge height : 3.8 Mtr. |
