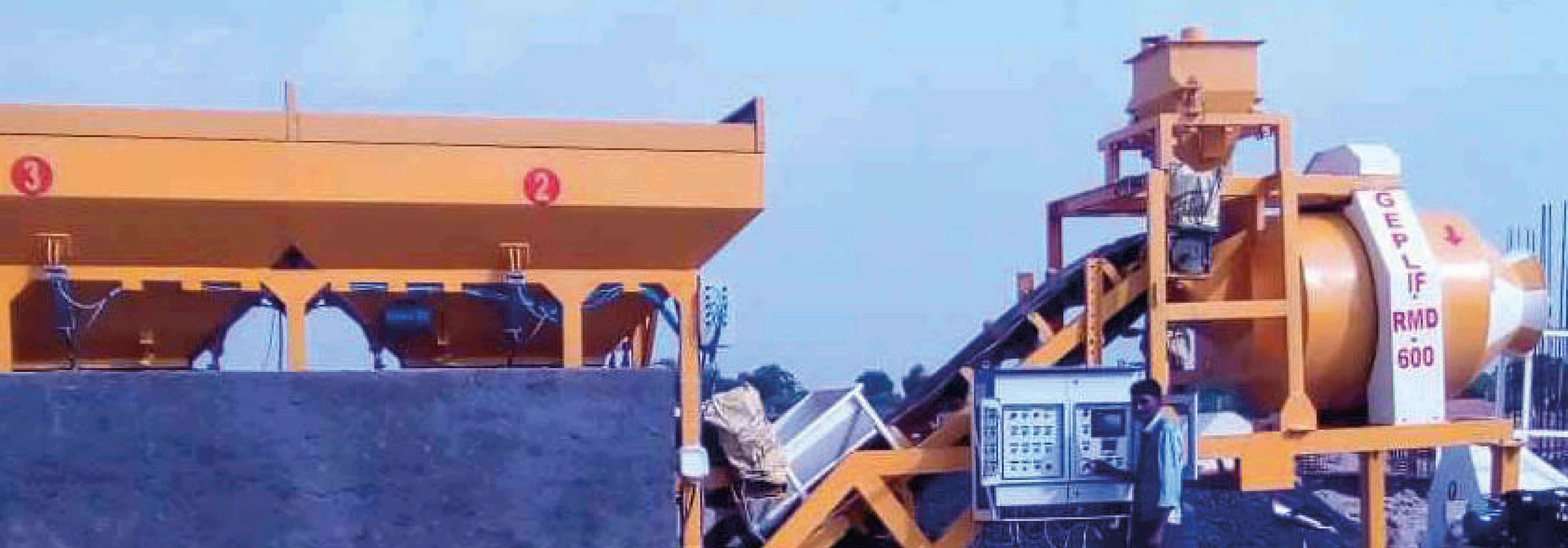

Gayatri Engimech Pvt. Ltd. Reversible Drum Mixer Concrete Batching Plant is designed with easy operation and a cost-effective solution. It can be accommodated in less area with maximum efficiency and reliability to produce all types of quality concrete.
This model is particularly used in DAM/Industrial projects and canal projects where aggregate size is bigger.
| SR. NO. | DESCRIPTION | GEPL IFRMD 15 | GEPL IFRMD 20 | GEPL IFRMD 30 |
| A | Concrete out-put Capacity | 15 m³/hr. | 20 m³/hr. | 30 m³/hr. |
| B | Mixer Capacity | 400 lit. | 500 lit. | 600 lit. |
| C | Type of Mixer | Drum Mixer | ||
| D | Cycle Time | 90 Sec | 90 Sec | 90 Sec |
| E | No. of Bin(Crossbin) | 4 Nos. | ||
| F | Weighing System | |||
| Aggregate | Yes | |||
| Cement | Yes | |||
| Water | Yes | |||
| Additive | Yes | |||
| Air Compressor | Yes | |||
| G | Discharge Height | 1.6 Mtr. | ||
| Concrete out-put Capacity : 15 m³/hr. |
| Mixer Capacity : 400 lit. |
| Concrete out-put Capacity : 20 m³/hr. |
| Mixer Capacity : 500 lit. |
| Concrete out-put Capacity : 30 m³/hr. |
| Mixer Capacity : 600 lit. |
| Type of Mixer : Drum Mixer |
| Cycle Time : 90 Sec |
| No. Of Bins(Crossbin) : 4 Nos. |
| Weighing System |
| Aggregate : Yes |
| Cement : Yes |
| Water : Yes |
| Additive : Yes |
| Air Compressor : Yes |
| Discharge Height : 1.6 Mtr. |
