Gayatri Engimech Pvt. Ltd. Compact Concrete Batching plants are the best turnkey solution for Small & Medium projects, designed to get your concrete batching plant running and profitable as quickly as possible and producing quality concrete with the least amount of hassle.

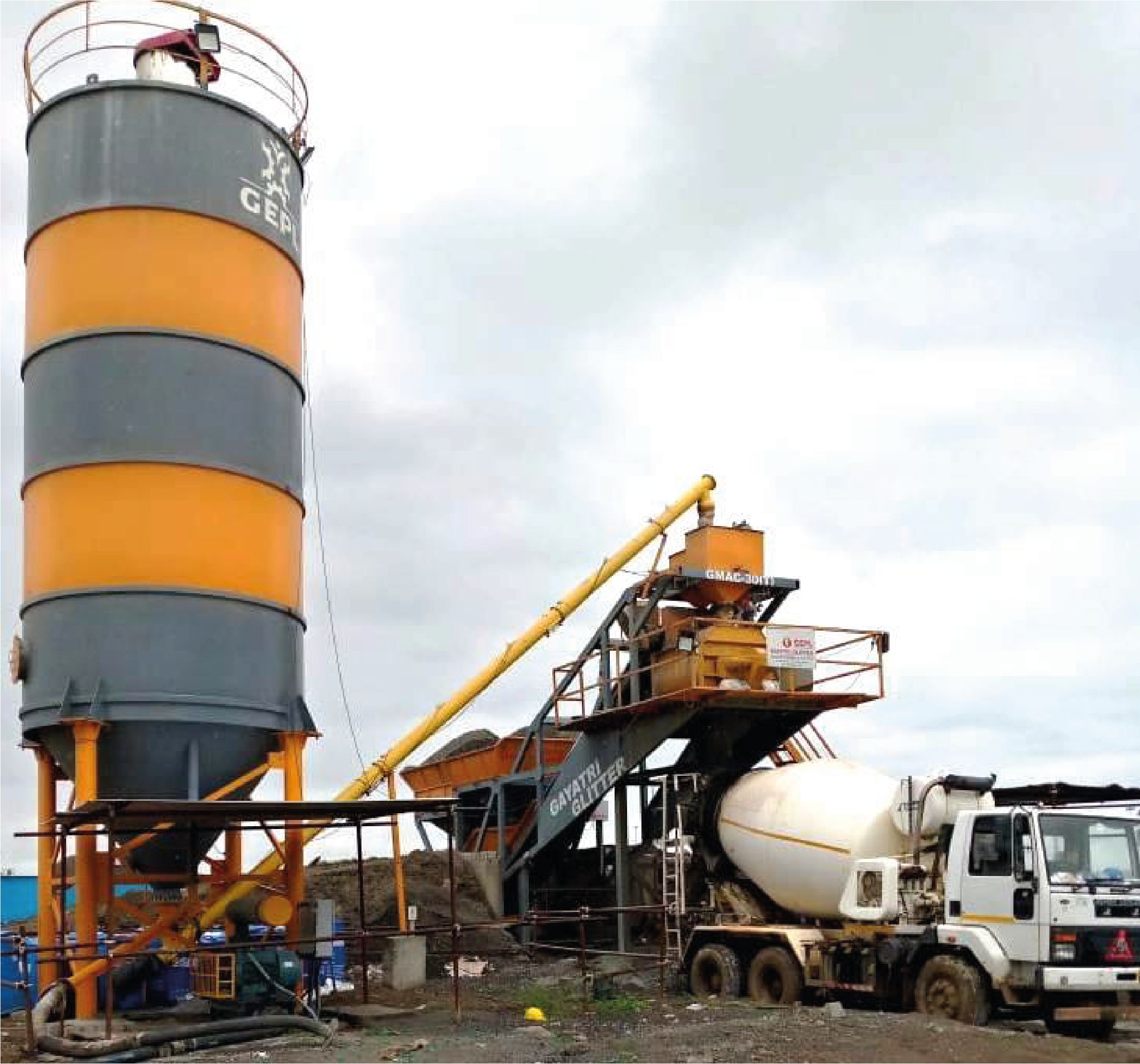

COMPACT CONCRETE BATCHING PLANT
Capacity upto 90 m³/hr.
Gayatri Engimech Compact Concrete Batching plants is a suitable solution for Large scale projects to produce High-quality concrete production.
The plant is built to offer maximum rated production capacity, work long hours, and flexibility to be used for several massive infrastructural projects.
The plant is equipped with a High-Tech Automation system including the whole system is controlled through advanced software.
- Quick and easy installation due to Compact design.
- Minimum foundation cost.
- Possibility of installation on a confined space.
- Accurate dosing system for every component
- Easy maintenance & low operating cost.
- Smart Automation Software.
- It can be economically transported to anywhere.
- ully modular design for rapid installation
- Reliable and Cost-effective
- Short installation time
- Spacious low maintenance mixer
- Accurate dosing system for every component
- Easy maintenance & low operating cost
- Smart Automation Software
Compact Concrete Batching Plant TECHNICAL INFORMATION
| SR. NO. | DESCRIPTION | GEPL GMAC | GEPL GMAC | GEPL GMAC |
| A | Concrete out-put Capacity | 24 m³/hr. | 30 m³/hr. | 45 m³/hr. |
| B | Mixer Capacity | 400 lit. | 500 lit. | 750 lit. |
| C | Batch Capacity | 0.4 m³ | 0.5 m³ | 0.75 m³ |
| D | Type of Mixer | Pan | Pan/Twin Shaft/Planetary | |
| E | No. of Bin (In-line) | 4 Nos. | ||
| F | Weighing System | |||
| Aggregate | Yes | |||
| Cement | Yes | |||
| Water | Yes | |||
| Additive | Yes | |||
| G | Air Compressor | Yes | ||
| H | Discharge height | 3.8 Mtr. | ||
| Concrete out-put Capacity : 24 m³/hr. |
| Mixer Capacity : 400 lit. |
| Batch Capacity : 0.4 m³ |
| Typ of Mixer : Pan |
| Concrete out-put Capacity : 30 m³/hr. |
| Mixer Capacity : 500 lit. |
| Batch Capacity : 0.5 m³ |
| Typ of Mixer : Pan/Twin Shaft/Planetary |
| Concrete out-put Capacity : 45 m³/hr. |
| Mixer Capacity : 750 lit. |
| Batch Capacity : 0.75 m³ |
| Typ of Mixer : Pan/Twin Shaft/Planetary |
| Weighing System |
| Aggregate : Yes |
| Cement : Yes |
| Water : Yes |
| Additive : Yes |
| Air Compressor : Yes |
| Discharge height : 3.8 Mtr. |
| SR. NO. | DESCRIPTION | GEPL GMAC | GEPL GMAC | GEPL GMAC |
| A | Concrete out-put Capacity | 60 m³/hr. | 75 m³/hr. | 90 m³/hr. |
| B | Mixer Capacity (In ltr.) | 1500/1000 | 1875/1250 | 3000/2000 |
| C | Batch Capacity | 1 m³ | 1.25 m³ | 2 m³ |
| D | Type of Mixer | Twin Shaft/Planetary | ||
| E | No. of Bin (In-line) | 4 Nos. | ||
| F | Weighing System | |||
| Aggregate | Yes | |||
| Cement | Yes | |||
| Water | Yes | |||
| Additive | Yes | |||
| G | Air Compressor | Yes | ||
| H | Discharge height | 3.8 Mtr. | ||
| Concrete out-put Capacity : 60 m³/hr. |
| Mixer Capacity : 1500/1000 |
| Batch Capacity : 1 m³ |
| Typ of Mixer : Twin Shaft/Planetary |
| Concrete out-put Capacity : 75 m³/hr. |
| Mixer Capacity : 1875/1250 |
| Batch Capacity : 1.25 m³ |
| Typ of Mixer : Pan/Twin Shaft/Planetary |
| Concrete out-put Capacity : 90 m³/hr. |
| Mixer Capacity : 3000/2000 |
| Batch Capacity : 2 m³ |
| Typ of Mixer : Twin Shaft/Planetary |
| No. of Bin (In-line) : 4 Nos |
| Weighing System |
| Aggregate : Yes |
| Cement : Yes |
| Water : Yes |
| Additive : Yes |
| Air Compressor : Yes |
| Discharge height : 3.8 Mtr. |
