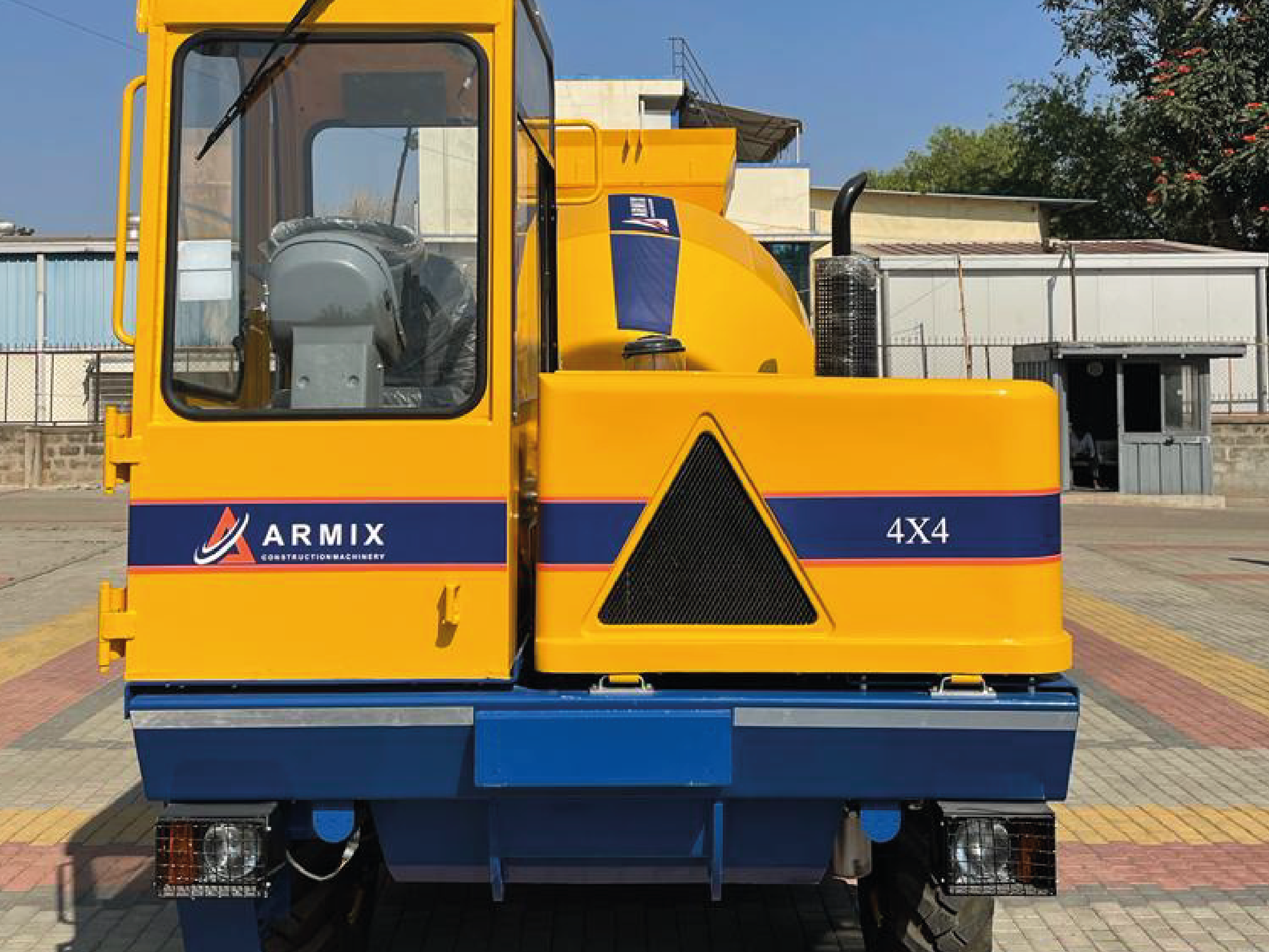

Our Self-loading concrete mixer is a batching plant on wheels. It produces fresh onsite concrete in which loading and mixing arrangements are attached on wheels. It loads the materials to the mixer without needing a conventional batching plan or a tractor.
This model is particularly well-demanded in RMC and dedicated job sites area.
The mixer is equipped with a High-Tech Automation system including the whole system is controlled through advanced software.
| SR. NO. | DESCRIPTION | |
| A | Engine | KOEL 4R810 NA diesel engine |
| B | cylinder | 4 |
| C | BSIII emission compliant | 37.2KW (49.9 hp) @ 2200 rpm |
| D | Heavy Duty Tyre | 12.0/75-18-12 PR |
| E | Drum Capacity | 2.73 cu m/batch |
| F | Drum Output | 2 cu m/batch |
| G | Net Vehicle Weight | 4900 kg |
| H | Laden Vehicle Weight | 9590 kg |
| I | Water Tank Capacity | 360 ltr |
| J | Fuel Tank Capacity | 80 ltr |
| K | Bucket Capacity | 320 ltr |
| L | Vehicle Speed | 22 kmph |
