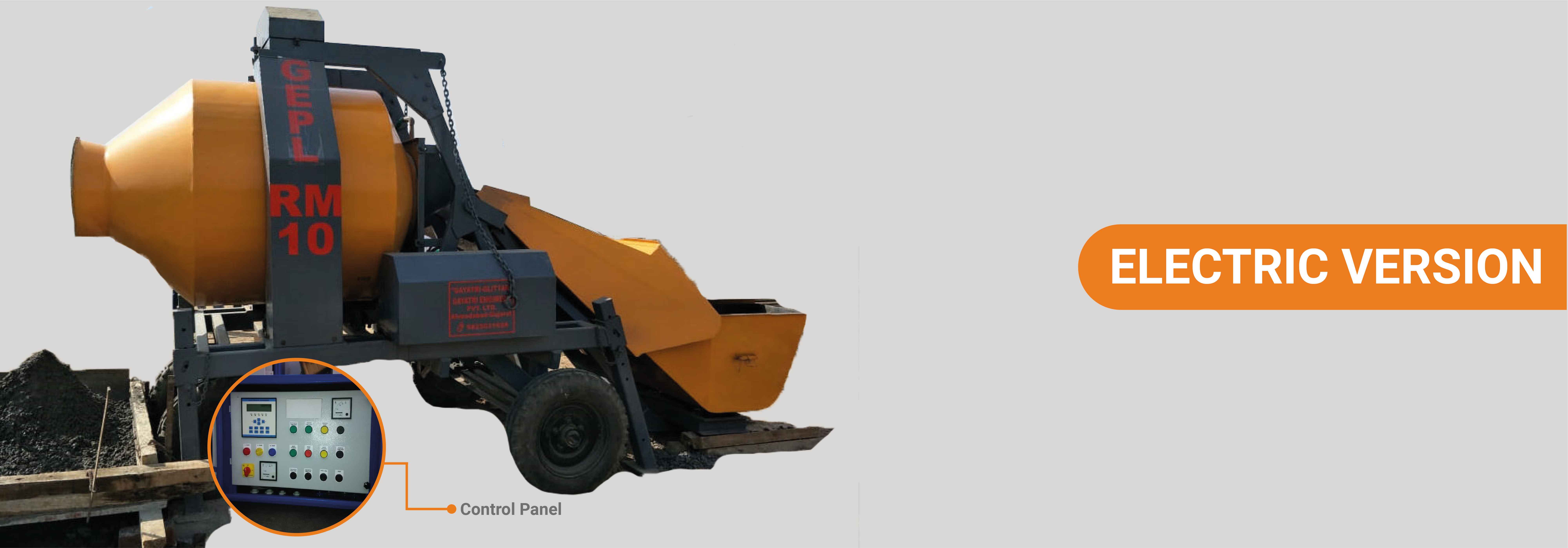

Gayatri Engimech Pvt. Ltd. Reversible Concrete Mixer Machine having features like weighing system, auto water dozing system, mobility/two bar system, printing facility and micro processor based control panel.
Reversible drum mixer manufacturers
Capacity 8-15 m³/hr.
Reverse Drum MixerTECHNICAL INFORMATION
| SR. NO. | DESCRIPTION | GEPL IFRMD 15 | GEPL IFRMD 20 | GEPL IFRMD 30 |
| A | Concrete out-put Capacity | 8-10 m³/hr. | 10-12 m³/hr. | 12-15 m³/hr. |
| B | Mixer Capacity | 500 lit. | 600 lit. | 750 lit. |
| C | Main Drive of Mixer | 10 HP | 12.5 HP | 15 HP |
| D | Type of Mixer | Reversible Drum Type | ||
| E | No. of Bins | 3 Bins / Single Bin | ||
| F | Weighing System | |||
| Aggregate | Digital Loadcell based | |||
| Cement | Digital Loadcell based | |||
| Water | Sensor based | |||
| Control Panel | Micro Processor based | |||
| G | Mobility / Tow Bar System | Yes | ||
| H | Suggested DG Set | 25 KVA | 30 KVA | |
| I | Discharge Height | 1.6 Mtr. | ||
| J | Optional Accessories | Printing Facility / Printer, Auto Admixture Dozing System, Single / Two / Three Bins System | ||
| Concrete out-put Capacity : 8-10 m³/hr. |
| Mixer Capacity : 500 lit. |
| Mixer Capacity : 10 HP |
| Suggested DG Set: 25 KVA |
| Concrete out-put Capacity : 10-12 m³/hr. |
| Mixer Capacity : 600 lit. |
| Mixer Capacity : 12.5 HP |
| Suggested DG Set: 25 KVA |
| Concrete out-put Capacity :12-15 m³/hr. |
| Mixer Capacity : 750 lit. |
| Mixer Capacity : 15 HP |
| Suggested DG Set: 30 KVA |
| Type of Mixer : Reversible Drum Type |
| No. Of Bins : 3 Bins / Single Bin |
| Weighing System |
| Aggregate : Digital Loadcell based |
| Cement : Digital Loadcell based |
| Water : Sensor based |
| Control Panel: Micro Processor based |
| Mobility / Tow Bar System : Yes |
| Discharge Height : 1.6 Mtr. |
| Optional Accessories |
| Printing Facility / Printer, Auto Admixture Dozing System, Single / Two / Three Bins System |
Capacity 8-15 m³/hr.

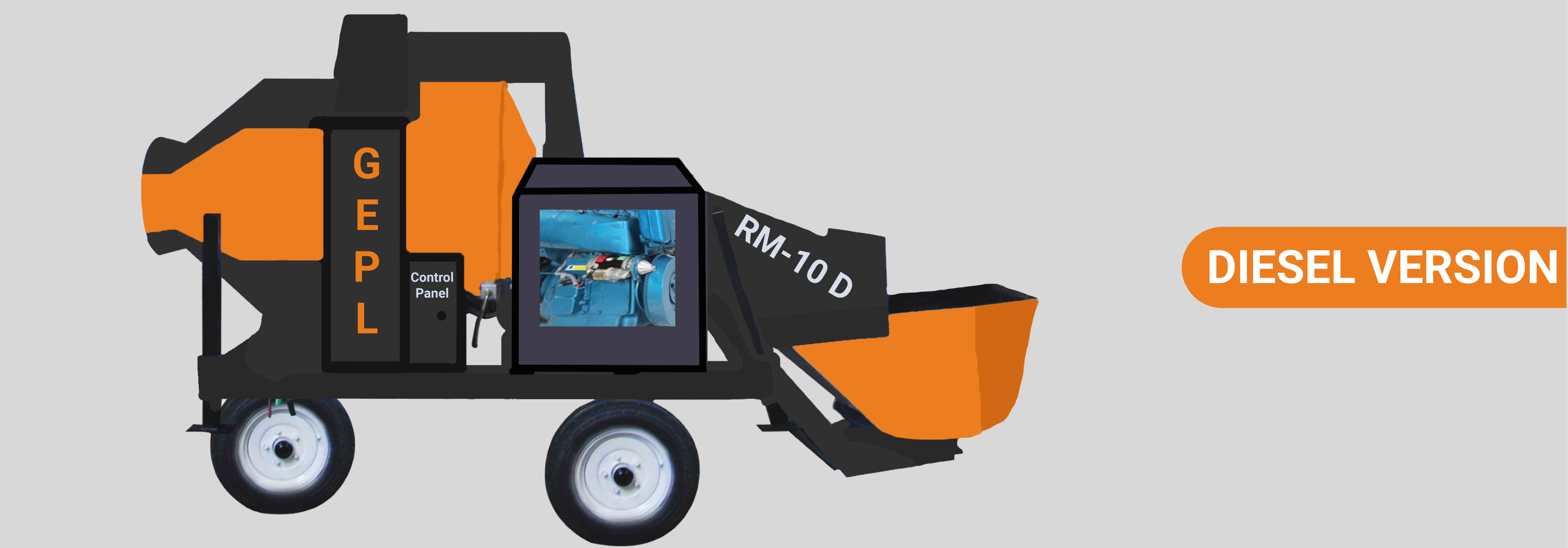

Gayatri’s Reversible Concrete Mixer Machine with diesel engine made for the sites where the electric supply is not possible/available. This machine comes with the features like weighing system, auto water dozing system, mobility/two bar system, printing facility and micro processor based control panel.
TECHNICAL INFORMATION
| SR. NO. | DESCRIPTION | GEPL RM-10 D | GEPL RM-12 D | |
| A | Concrete out-put Capacity | 8-10 m³/hr. | 10-12 m³/hr. | |
| B | Mixer Capacity | 500 lit. | 600 lit. | |
| B | Main Engine Drive | 16 HP Diesel Engine | ||
| C | Type of Mixer | Reversible Drum Type | ||
| E | No. of Bins | 3 Bins / Single Bin | ||
| F | Weighing System | |||
| Aggregate | Digital Loadcell based | |||
| Cement | Digital Loadcell based | |||
| Water | Sensor based | |||
| Control Panel | Micro Processor based | |||
| G | Mobility / Tow Bar System | Yes | ||
| G | Discharge Height | 1.6 Mtr. | ||
| J | Optional Accessories | Printing Facility / Printer, Auto Admixture Dozing System, Single / Two / Three Bins System | ||
| Concrete out-put Capacity : 8-10 m³/hr. |
| Mixer Capacity : 500 lit. |
| Concrete out-put Capacity : 10-12 m³/hr. |
| Mixer Capacity : 600 lit. |
| Main Engine Drive : 16 HP Diesel Engine |
| Type of Mixer : Reversible Drum Type |
| No. Of Bins: 3 Bins / Single Bin |
| Weighing System |
| Aggregate : Digital Loadcell based |
| Cement : Digital Loadcell based |
| Water : Sensor based |
| Control Panel: Micro Processor based |
| Mobility / Tow Bar System : Yes |
| Discharge Height : 1.6 Mtr. |
| Optional Accessories |
| Printing Facility / Printer, Auto Admixture Dozing System, Single / Two / Three Bins System |
